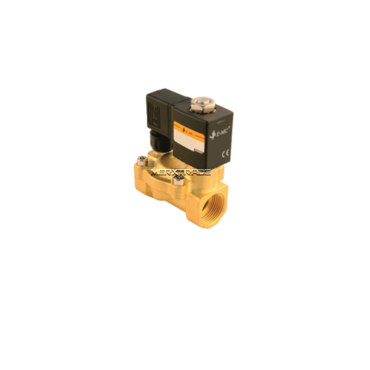

Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC thread BSPP

Model: Normaly closed Material body: Brass
Connection: Thread BSPP Material inner parts: Brass / stainless steel
Voltage: 24V DC Material seals: NBR
Operating pressure: see tabel below. Material pilot: Plastic
Temperature range: -10°C to +80°C Protection class: IP65
Installation position: With upright magnets Brand: E-CM
Media: Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Size: 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2"
Pressure bar: 0-13 0-13 0,5-16 0,5-16 0,5-16 0,5-16 0,5-16 0,5-16 0,5-16
kv value l/min: 3,2 3,2 64 64 108 171 313 427 684

Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: ELP00NCE4N
Body material Brass
Seat NBR
Grouped product items
SKU Product Name DN Length € / st Qty
ELP10NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 3/8" 3/8" 66
€56.18
- +
ELP15NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 1/2" 1/2" 66
€56.18
- +
ELP20NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 3/4" 3/4" 75
€65.77
- +
ELP25NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 1" 1" 96
€94.63
- +
SLP32NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 1.1/4" 1.1/2" 131
€187.57
- +
SLP40NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 1.1/2" 1.1/2" 131
€187.57
- +
SLP50NCE4N Solenoid valve 2/2-way Brass/NBR NC normaly closed 24V DC G 2" 2" 165
€285.12
- +
